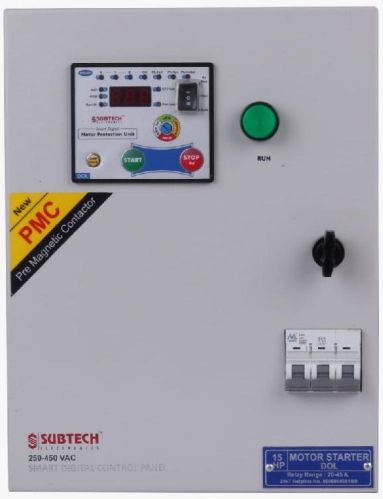

Three Phase Motor Starter Control Panel


Three Phase Motor Starter Control Panel
Business Type Manufacturer, Exporter, Supplier, Retailer, Wholesaler
Operating Voltage 130V to 280V
Box Type Powder Coated Box, Compact size Wall mounting, Temper proof and maintenance free.
Indication LED Indication status for MAINS & GENERATOR On
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Technology
Microcontroller based technology with Pre-Program interlocking to prevent short circuit.
Usage
Industrial Area
Rated Current
63A to 630A

Three Phase Motor Starter Control Panel are very much suitable in domestic, agriculture for irrigation and industrial purposes. They can be operated in a voltage range from 170-470 VAC. 01 to 100 HP Starters developed with micro controller Digital overload relay for monitoring /controlling for more protection of motor and PMC (Pre Magnetic Contractor) for instant switching. PMC is a modified concept of contractor with benefits of cost effectiveness & free from problems of Chattering & Coil burning. In digital overload relay, you can program the voltage range as well as current range within which the motor has to be operated. Starter will trip the motor if supply parameters go out of range. It can be operated in AUTO or MANUAL modes. When the AUTO mode is once selected, it automatically starts the motor whenever the power resumes in all three phases in healthy condition. While in the manual mode, one can manually start and stop the motor instantly with the help of separate smooth push buttons. The starter is having smart digital ampere, volt and hour meter.

Features :

  • Over load Protection (Programmable)
  • Under Load Protection (Programmable)
  • Under voltage protection (Programmable)
  • Over voltage protection (Programmable)
  • Single phase preventer
  • Reverse phase protection
  • Unbalance voltage protection
  • Auto/manual mode selector switch
  • Inbuilt MCB /MCCB to extra protection
  • Hour meter to show the total time of run
  • Digital Amp. & volt meter inbuilt
  • Auto switch inbuilt with Start delay time
  • Wide voltage range - 170 - 450 VAC
  • Fabricated with powder coated G.I. sheet
  • Continuous running capacity - 100 + Hrs
